Neosoft Technologies Delivers Two USRP X440-Based 32×32 MIMO Systems for Advanced Wireless Research

Neosoft Technologies has completed the design and integration of two 32×32 MIMO systems built around Ettus Research / NI’s USRP X440 SDR platform.
These systems provide a complete and robust infrastructure for advanced multi-antenna experimentation, signal-processing research, and SDR development within a university laboratory.

🔧 A system-level engineering approach

Neosoft was responsible for delivering a turnkey solution, covering hardware selection, synchronization architecture, rack integration, and final validation.

✔ 32×32 MIMO Architecture

Each system includes:

32 transmit channels
32 receive channels
shared timing and reference clocks
precise PPS distribution
optimized RF cabling to minimize loss

This architecture supports demanding multi-channel experimental setups.

Optimized DELL servers for high-throughput SDR workloads

To sustain the data rates of the USRP X440, Neosoft performed:

complete performance analysis
processor and NIC selection
high-throughput network configuration
optimized storage layout
validation of continuous, lossless data streaming

This ensures stable operation during intensive SDR sessions.

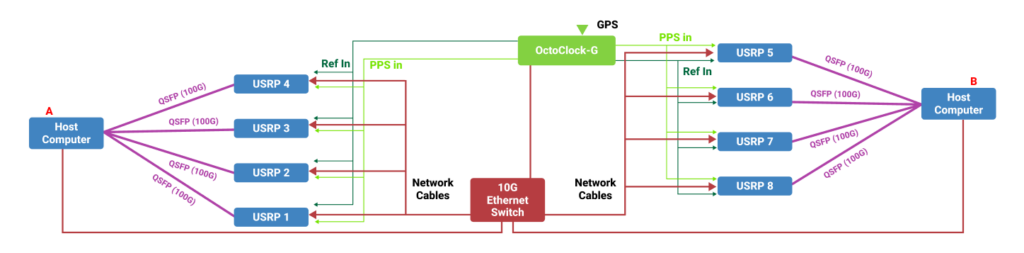

Advanced synchronization infrastructure

Multi-channel SDR systems rely heavily on timing accuracy.
Neosoft deployed a full synchronization setup including:

centralized 10 MHz reference clock
PPS distribution
low-loss RF cabling
channel-to-channel timing validation
system-level coherence testing

The result is a stable and predictable MIMO test environment.

⚡ Rack integration and power management

Both systems were fully integrated into dedicated equipment racks with:

protected and redundant power distribution
optimized airflow and thermal management
structured RF, timing and Ethernet cabling
room for future expansions

This ensures operational reliability and easy maintenance.

🎯 A turnkey SDR platform for advanced laboratory work

With these two integrated USRP X440 32×32 systems, the university now benefits from a high-performance infrastructure suitable for:

multi-antenna experimentation
real-time algorithm prototyping
model validation through physical testing
hands-on SDR education using professional-grade hardware

Neosoft strengthens its role as a specialist in custom SDR integration for academic and industrial environments.
